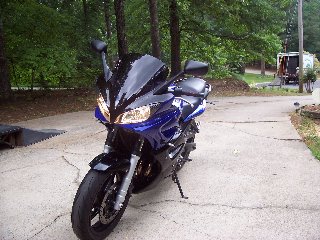

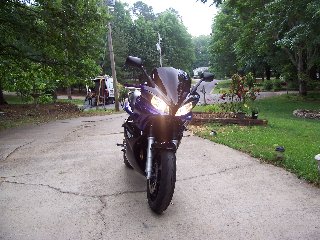

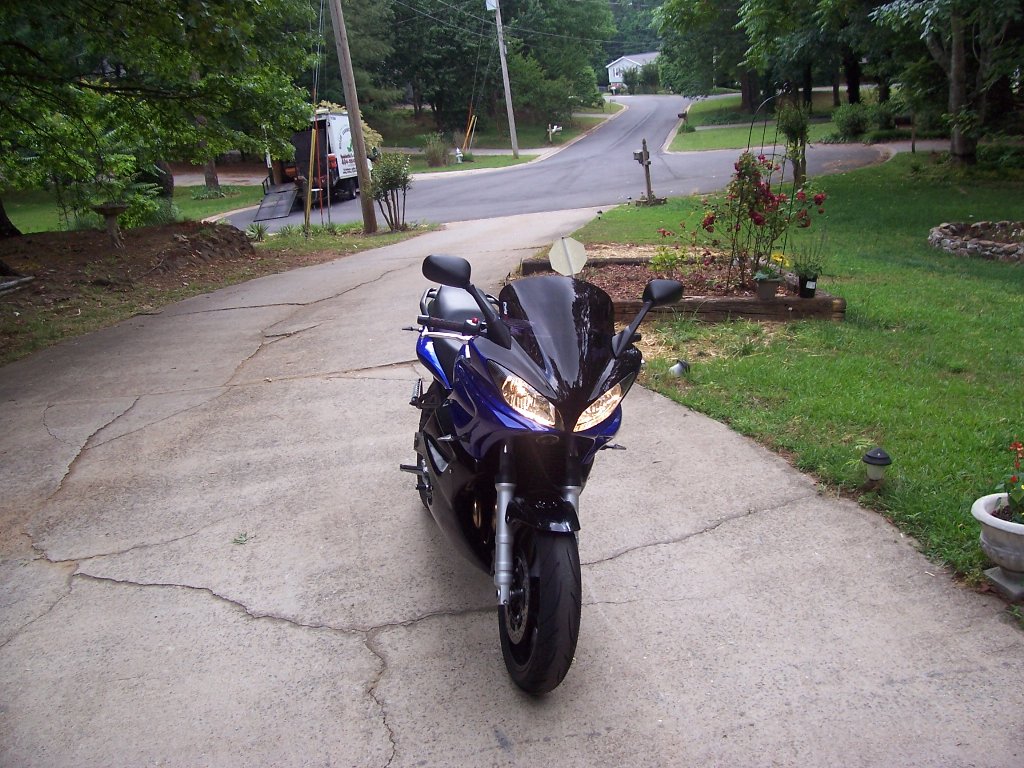

Here are some pictures after the dual headlight mod - click here for bd43's full instruction page

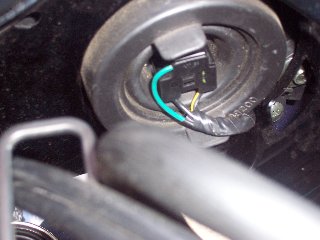

Here's a pic of the added green wire for the low beam bulb.

When I replaced my front fairing, I rerouted this wire through an existing connector. This is one of the two plugs that connects the chassis wiring harness to the front fairing wiring harness. Here are a couple pics, it's a green wiring with lighter green shrink wrap near the pigtail.
